منزل > المنتجات> وحدة تحكم وحدة التحكم الإلكترونية> 39100-82720 Controller ECU 3910082720 for Engine Parts

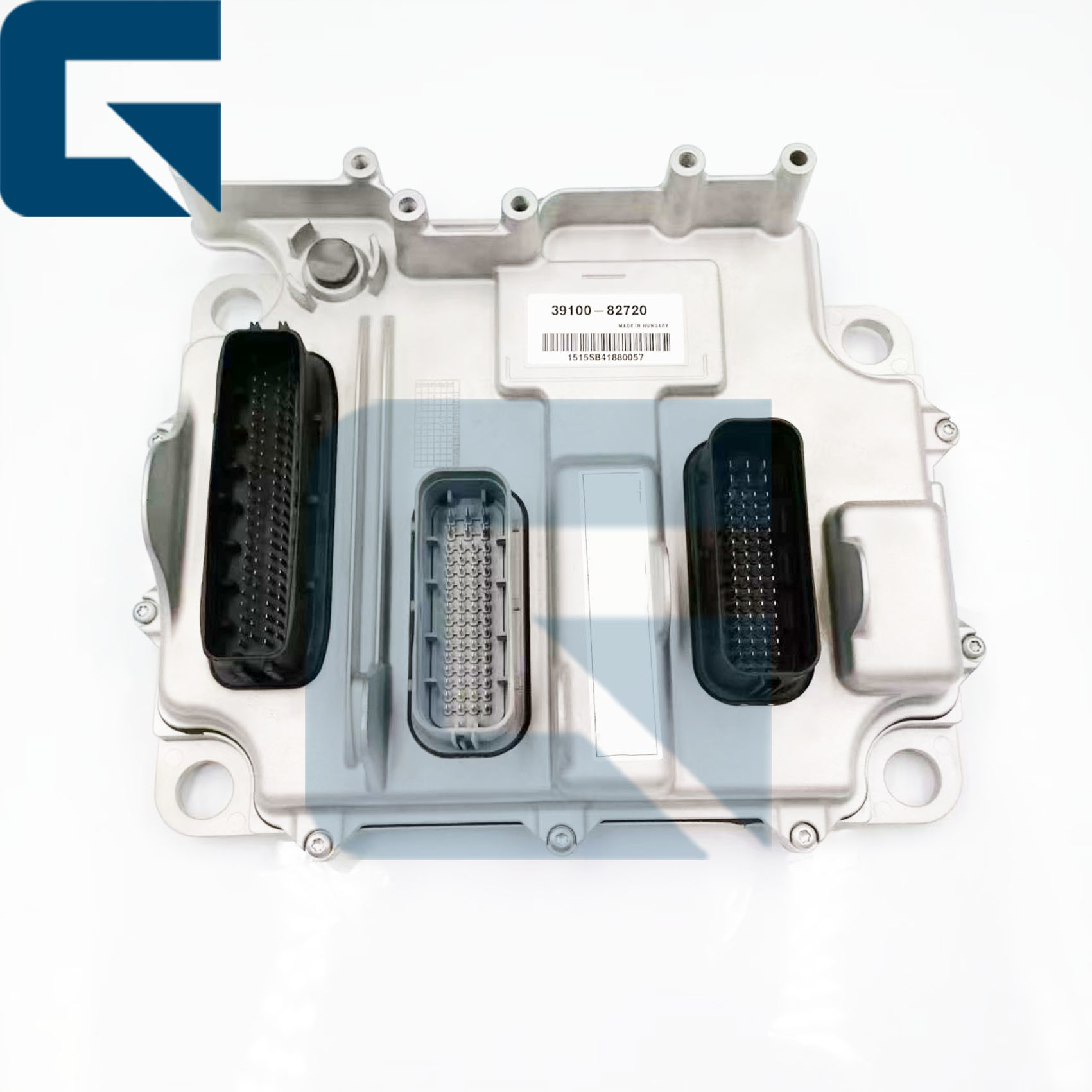

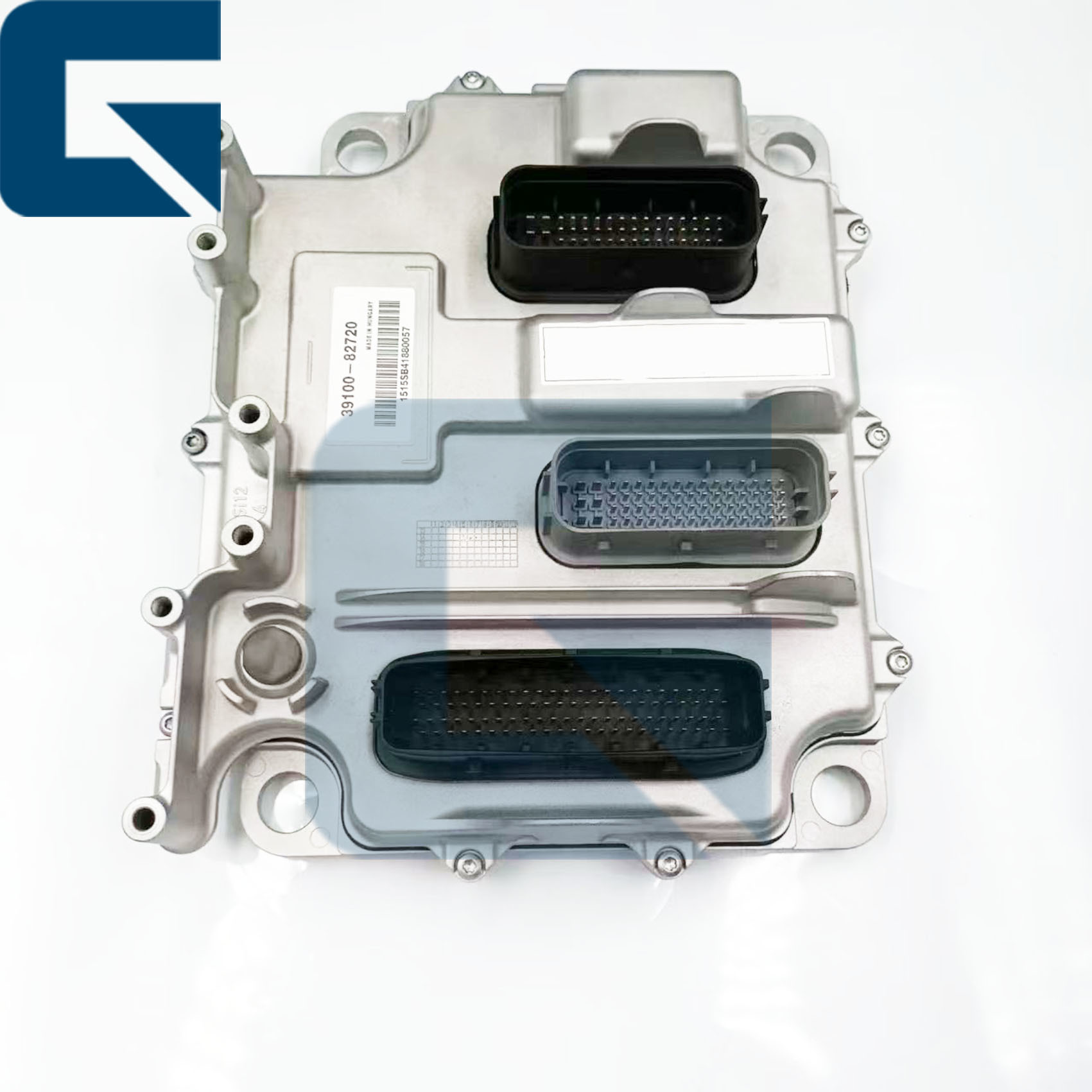

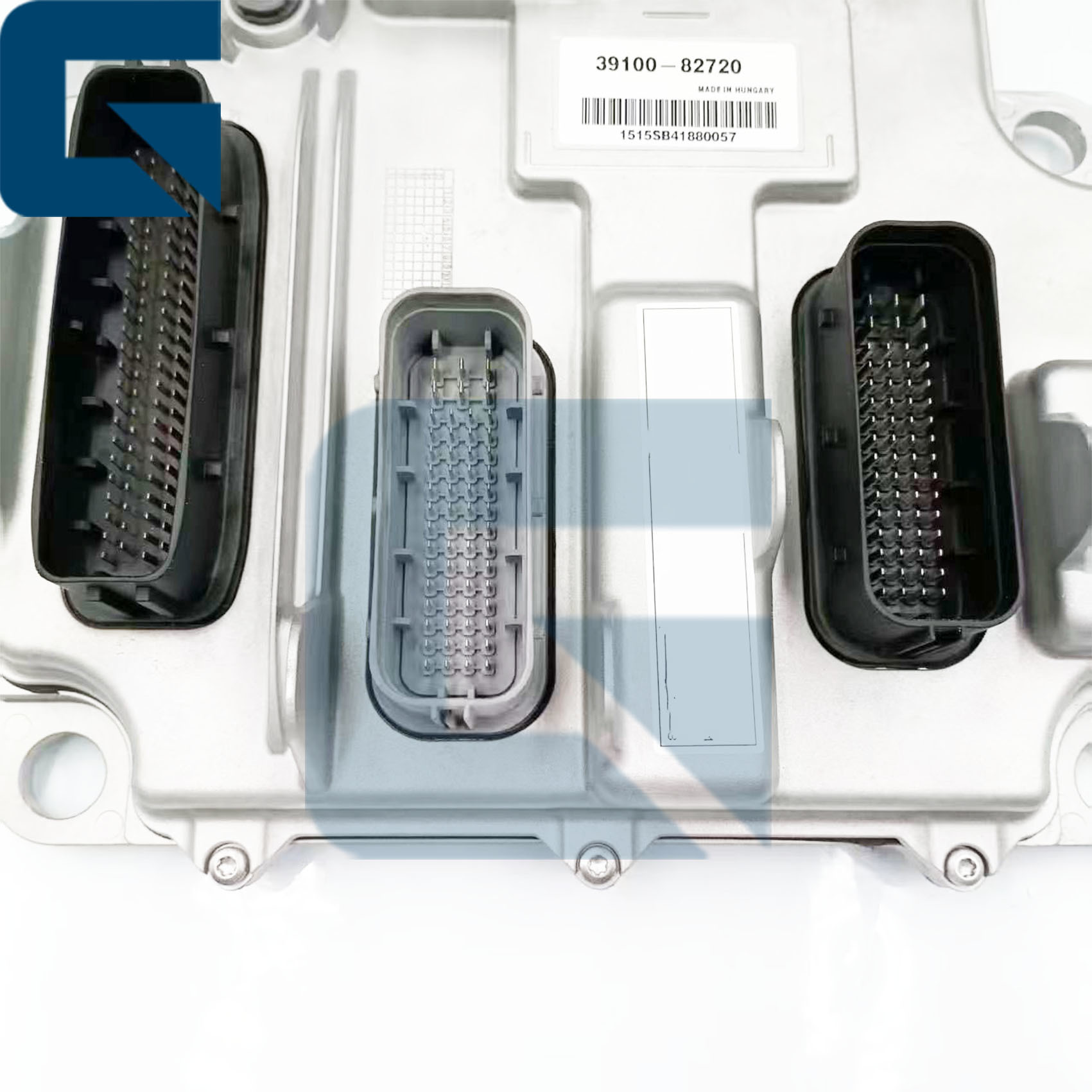

39100-82720 Controller ECU 3910082720 for Engine Parts

المعلومات الأساسية

مكان المنشأ:	الصين
اسم العلامة التجارية:	Jiajue
رقم الموديل:	/

الحد الأدنى لكمية:	1 قطعة
الأسعار:	$600/pc
تفاصيل التغليف:	وحدة التحكم 39100-82720 ECU 3910082720 لأجزاء المحرك معبأة في عبوات تصدير قياسية وفقًا لمتطلبات العم
وقت التسليم:	1-5 يوم عمل
شروط الدفع:	خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون،
القدرة على العرض:	100 قطعة/شهر

افضل سعر ﺎﺘﺼﻟ ﺍﻶﻧ

معلومات تفصيلية

اسم المنتج:	39100-82720 وحدة تحكم ECU 3910082720 لأجزاء المحرك	مادة:	فُولاَذ
مكان المنشأ:	قوانغدونغ، الصين	موك:	1
تصنيع المعدات الأصلية:	يدعم
إبراز:	39100-82720 ECU controller for engine,engine parts ECU controller,3910082720 engine control unit , engine parts ECU controller , 3910082720 engine control unit

منتوج وصف

Product Overview

High-quality 39100-82720 ECU designed specifically for Engine applications, ensuring optimal performance and reliability in demanding industrial environments.

Product Specifications

Product Name	Controller ECU
Part Number	39100-82720
Brand Name	JIAJUE
Condition	New
Availability	Rich Stock
Approximate Weight	3KG
Size (per unit)	30cm x 25cm x 10cm
Delivery Time	Usually delivered within 1-3 days after payment

Product Images

Frequently Asked Questions

How long does it take to install the ECM on machine?

Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.
Programming & Testing: 30-60 minutes.

Pro Tip: If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need an ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.

How to determine if the ECM is faulty and needs replacement?

The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness often indicate ECM failure.
Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after sensors and harnesses have been ruled out.
Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.

What's your payment method?

Our payment methods include T/T, L/C, PayPal, etc.

Do you have stock?

Rich stock available.

How can I know my order is already shipping?

When the goods ship, we will share the tracking number. For sea or air freight, we can provide the bill of lading.

Step-by-Step Testing Guide

Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
Inspect: Check the ECU for physical damage or loose connections.
Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.
Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.
Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.
Reset (if needed): Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.
Document: Keep a record of all tests, codes, and results for future reference.

Quick Checklist for Buyers

Before replacing the ECM, always check the fuses, main relays, and ground connections. In many cases, a faulty ground wire or low battery voltage mimics an ECM failure.
